BOYGA
Autonomous Multi-Rotor Combat UAS with UAV Payload

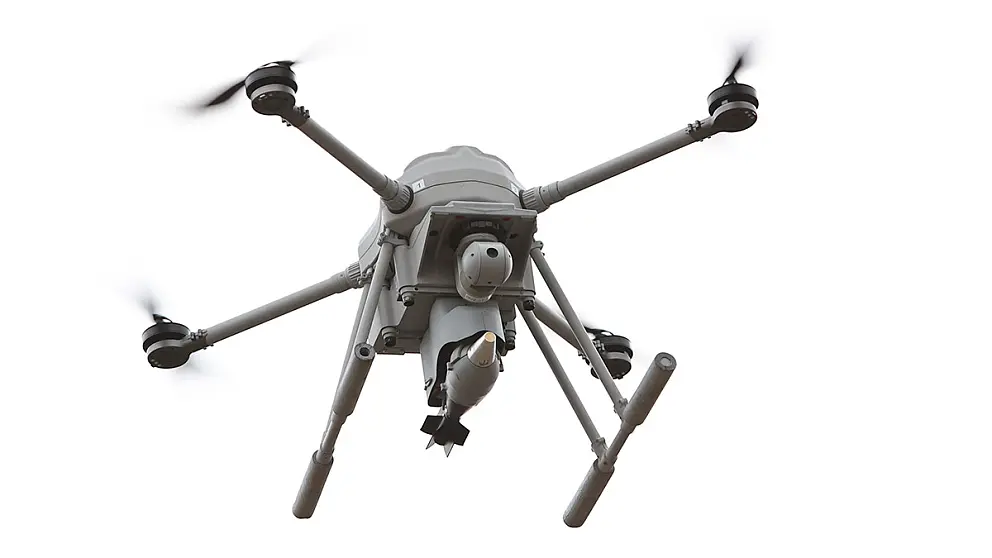

Ammunition Drop UAV is a UAV solution that can carry 81 mm UAV ammunition adapted to the mechanism that releases the safety system, and can carry out the planned task and drop the useful loads on the target or coordinate it chooses.
It has an algorithm that helps target estimation of UAV ammunition. It performs a task at the level of “Man-in-the-loop” (where the user is in the loop) by following the target selected by the user from the screen image with image processing algorithms. Munition system integration is carried out in cooperation with MKE.
The CRPA antenna integrated into BOYGA enhances resilience against GPS jamming, ensuring reliable navigation and mission continuity in contested environments. Thanks to KERKES technology, BOYGA can operate autonomously without GPS signals, maintaining precise mission execution even in GNSS-denied areas.
Görüntüleme Sistemi
| Gimbal | 2 Eksen |
| Video Çözünürlüğü | HD 720P |
| Optik Yakınlaştırma | 10X |
Haberleşme Sistemi
| Frekans | C Bant |
| Link Menzili | 8 km |
| Güvenlik | AES - 128 |
Yer Kontrol İstasyonu
| Tablet | 10.1 inç Dokunmatik Ekran |
| Çalışma Süresi | 2 saat |
Capabilities
- Combat-Proven
- Vertical Take-Off and Landing
- Rapid Deployment (Less than 1.5 minutes)
- Operation in GNSS-Denied orGNSS-Jammed Environments
- Day and Night Mission Capability
- Precision Strikes from High Altitudes
- Low Radar Cross-Section Platform Design
- Easy Transport and Operation
- Emergency Landing Point and Autonomous
- Return-to-Home Capabilities
- Highly Reliable Fuze Design
- Advanced Ballistic Estimation Algorithm
- High-Destructive-Power Munition
- Precision Landing Sensor
Ground Control Unit
| Display | Rugged high-precision touchscreen |
| Military Environmental Qualification | MIL-STD-810G |
| Operating Time | 2 hours |
| Antenna Type | Internal or External Antenna |
| Interface | USB-ETHERNET-HDMI |
EO - IR Camera
81 mm UAV ammunition
Flight Time: 35 min (with payload)
Range 5 Km
Dimensions
(with Arms, Propeller Excluded)
900 × 900 × 510 mm
(L × W × H)
Dimensions
(without Arms, Propeller included)
550 × 550 × 510 mm
(L × W × H)
Maximum Take Off Weight
(with payload)
17 Kg
Endurance
(including payload)
35 minutes
Range
8.5 km (with external antenna)
5 km (with onboard GCS antenna)
Imaging
EO Camera,
30x Optical Zoom IR Camera
Maximum Flight Altitude
3000 m (MSL)
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Cruise Speed
15 m/s
Wind Resistance
10 m/s
