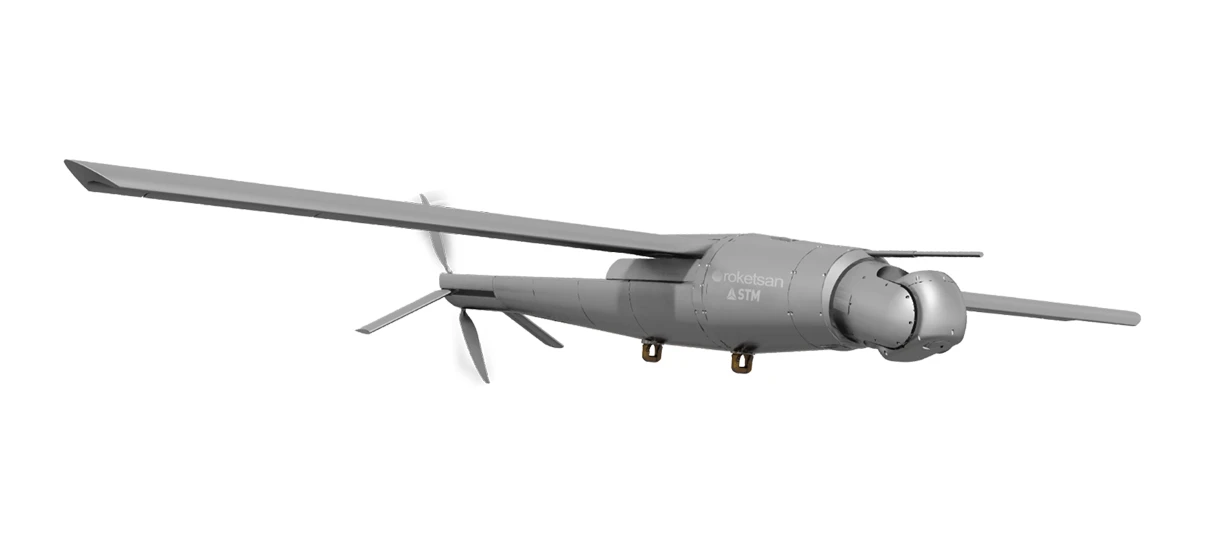

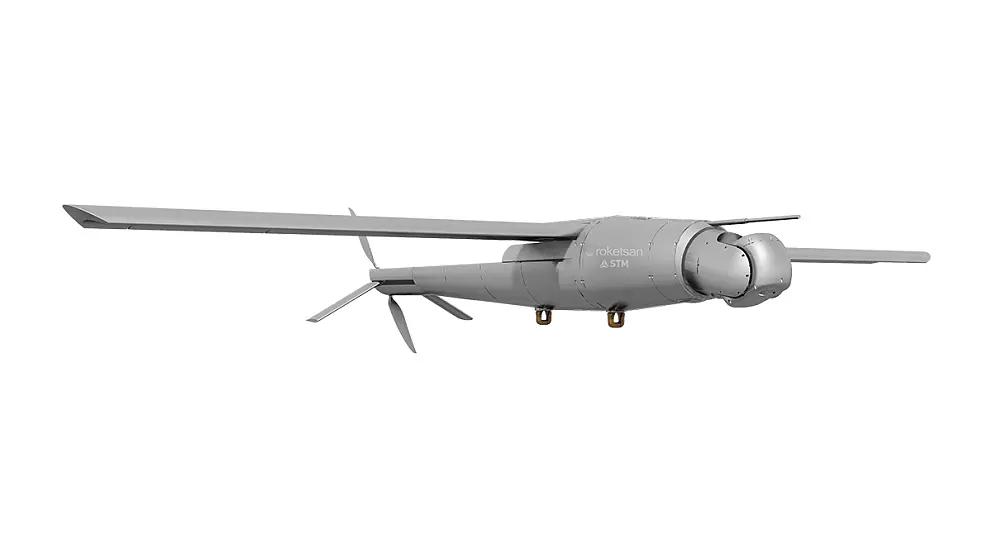

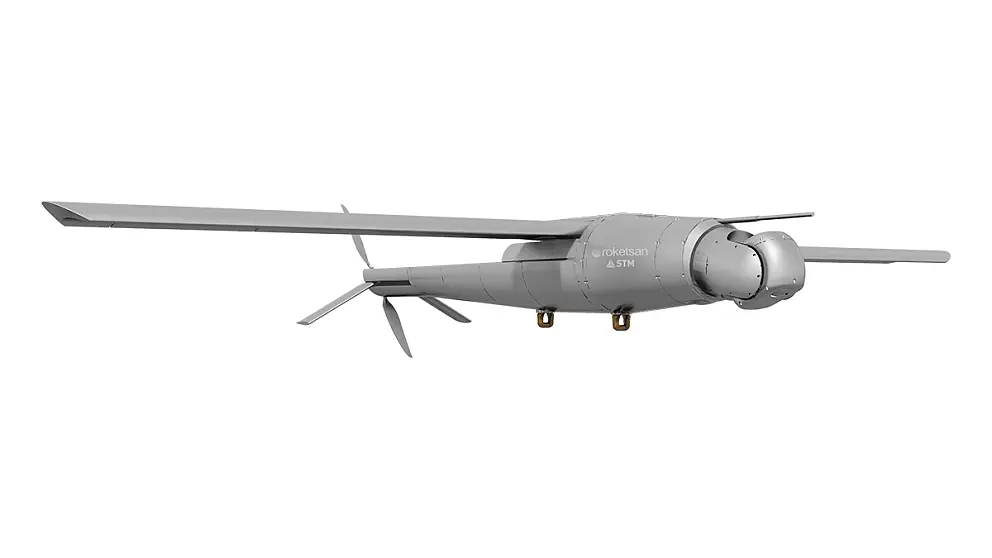

ALPAGUT
Smart Loitering Munition System
ALPAGUT, which can operated day or night, is effective against mobile or stationary land and sea targets, radar and communication systems, critical facilities, personnel and targets of opportunity.
ALPAGUT can be used in single or swarm configurations with an operational radius of 60 kilometers, an operational time more than 60 minutes and different types of warheads.
Once fired or released, the system will enter into target detection, tracking and evaluation mode, hovering in the air and the onboard TV/IIR seeker feeds the real time video image to the operator. ALPAGUT then attacks the identified target after obtaining user approval from the ground autonomously.
ALPAGUT can detect and recognize targets with its EO/IR sensorwithout being noticed or affected by jamming systems. The target can be pinpointed with an onboard guidance-control system.
In addition to all these features, the system also offers significant advantages to its users through its fire and forget ability with the capability of mission update during fly, and its rapid integration into manned and unmanned land/air/sea vehicles.
Capabilities
- Reliable Day and Night Operation
- Precision strike
- Tracking Moving Targets
- High Performance Navigation, Flight Control and Guidance Algorithms
- In-Flight Mission Abort and Emergency Self-Destruction Modes
- Indigenous National Embedded Hardware and Software
- Image Processing-Based Control Applications
- Image data assisted navigation under GNSS Denied conditions
Yer Kontrol
İstasyonu
| Kullanım Şekli | Mobil |
| Ekran | Dayanıklı Hassas Dokunmatik Ekran |
| Güneş Işığında Okunabilirlik | Mevcut |
| Askeri Çevresel Kalifikasyon Testleri | MIL-STD-810G |
| Suya ve Toza Dayanıklı Yapı | Mevcut |
| Çalışma Süresi | 2 saat |
| Çalışma Sıcaklığı | -20°C ila 50°C (-4°F ila 122°F) |
| Anten Tipi | Dâhili veya Harici Anten |
| Arayüz | USB-ETHERNET-HDMI |
| Askı Aparatı - Güneşlik | Mevcut |
Endurance 60+ min
Warheadç: 11 kg High Explosive Blast Fragmentation, Armour Piercing and Thermobaric Warhead Options
60+ Km Range
Day and Night Operation
Operating Range
60+ km
Endurance
60+ min
Warhead
11 kg High Explosive Blast Fragmentation, Armour Piercing and Thermobaric Warhead Options
Weight
55 kg
Height
2.3 m
Range
8 km
Görüntüleme
EO/IR Kamera
Seyir İrtifası
80-200 m (AGL)
Maksimum Seyir Hızı
20 m/s
Rüzgar Direnci
12 m/s
